CNC DIE SINKING EDM
DMNC-EDM (China), a Beijing Institute of Electro-machining (BIEM) subsidiary, founded in 1978, is a leading Chinese manufacturer of high-performance CNC EDM machines, including wire EDM and die sinkers.
PRODUCT RANGE
ADV 400
The ADV 400 is a high-accuracy CNC EDM machine, known for robust construction and advanced controls for demanding precision work.
Features:
-
Superior Accuracy: Positioning accuracy of 15/15/11 µm (X/Y/Z full travel).
-
Stable Work Platform: 600 x 400 mm table, handles 400 kg workpiece.
-
Advanced Siemens Control: Siemens 808D CNC with 15" touch screen.
-
Efficient Machining: 50 A max current, <0.1% min electrode wear.
ADI 300 (Single Head)
The ADI 300 is a high-precision CNC Die Sinking EDM, a compact and efficient solution for intricate die-sinking in limited spaces.
Features:
-
Compact Yet Capable: 300/212/272 mm X/Y/Z travel within a space-saving design.
-
Solid Workpiece Capacity: Supports 400 kg on a 600 x 400 mm table.
-
Intuitive Touch Screen: 15" TFT-LCD display for easy operation.
-
Excellent Surface Quality: Achieves a best surface finish of <0.1 µm.

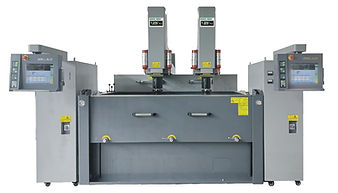

ADI 1800 (Twin Head)
The ADI 1800 Twin-Head is a high-precision CNC Die Sinking EDM with twin heads, optimized for increased productivity and large workpiece handling.
Features:
-
Dual-Head Productivity: Two independent heads for simultaneous machining.
-
Massive Working Area: 2000 x 1000 mm table, accommodating very large dies.
-
Extreme Load Capacity: Handles up to 13600 kg workpiece weight.
-
Extensive Travel: 1200/800/450 mm X/Y/Z travel for large-scale work.
45S+ Pro (Single Head)
The 45S+ Pro is a high-precision CNC Die Sinking EDM, offering robust performance and powerful specifications for demanding precision tasks.
Features:
-
Optimized Workspace: 700 x 400 mm table, 400 kg workpiece capacity.
-
3-Axis Simultaneous Control: Enables complex and precise machining paths.
-
Large Oil Tank: 590 L capacity for extended operation.
-
Consistent High Speed: Max machining speed of ≥500 mm/min.
120S+ Pro (Twin Head)
The 120S+ is a high-precision CNC Die Sinking EDM, distinguished by its substantial working area and capacity for extremely heavy workpieces, ideal for large-scale industrial applications.
Features:
-
Huge Workpiece Capacity: 1500 x 800 mm table, handles 4000 kg.
-
Maximized Spindle Clearance: 900 mm distance from spindle nose to table.
-
Ultra-Fast Machining: Max speed of ≥1000 mm/min for rapid material removal.
-
Enhanced Accuracy: Features step error and backlash compensation for all axes.
ZNC 540
ZNC Die sinking EDM is a cost-effective electrical discharge machining solution perfect for those new to EDM or for applications where high precision and surface finish are not critical. This traditional-style machine features manual X and Y-axis control, giving the operator hands-on positioning of the workpiece. The servo controlled Z-axis automates the electrode movement for reliable spark erosion.
Features
-
Manual X and Y Axis
-
Programmable Z Axis
-
Cost-effective
-
Widely used in various industries
