CONVENTIONAL LATHE

This German-China collaboration machine offers price-performance machine ​and a variety of metal working solution ranging from conventional drilling, turning machine, milling, bandsaw, grinding as well as CNC milling and lathe.

  • YouTube - Grey Circle

PRODUCT RANGE

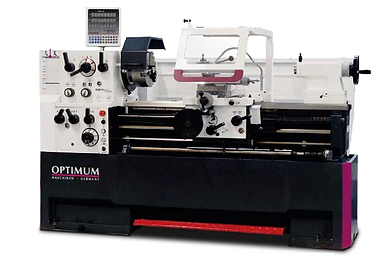

TH 3309

TH3309 is the light duty worker in the OPTIMUM conventional lathe series. It keeps the operation simple and easy maintenance. Recommend for hobbyist with small workshop and educational sector

Featuring:

  • Hardened and grinded  Z axis guideway

  • Spindlecollet Camlock DIN ISO 702-2 no.4

  • Gears and shaft tempered and ground

  • Main spindle running in oil bath

  • Easy spindle direction change via level on bed slide

  • Leading spindle cover

  • Guarantee concentricity of spindle nose better than 0.015mm

  • Emergency stop device foot pedal

  • Central lubricating system

  • Chip guard with integrated LED lamp

  • 3 axis DRO

  • Chip tray

  • Guidings on slide adjustable via V-ledges

TECHNICAL SPECIFICATION

MACHINE SPECIFICATION:

ELECTRICAL POWER: 3 PHASE, 400V

DIMENSIONS: 1685 x 745 x 1590 mm (with DRO)

WEIHT: 430 kg

SPINDLE SPECIFICATION:

SPINDLE MOTOR:  1.5 kW

SPINDLE TAPER: MT5

SPINDLE BORE: 38mm

WORKING CAPACITY:

CENTER HEIGHT:  165 mm

CENTER WIDTH: 830 mm

TURNING OVER BED: 330 mm

TURNING OVER BED BRIDGE: 448 mm

TURNING LENGTH IN BED BRIDGE: 196 mm

SPEED  & FEEDRATE:

SPEED RANGE: 70-2000 RPM, 16 Speeds

TOP SLIDE STROKE: 98 mm

CROSS SLIDE STROKE: 164 mm

LONGITUDINAL FEED: 0.052-1.392 mm/rev (32 feeds)

CROSS FEED: 0.014-0.38 mm/rev (32 feeds)

THREADING CAPABILITY:

METRIC PITCH: 0.4-7 mm/rev (26 pitches)

INCH PITCH: 56-4 turns/inch (34 pitches)

TAILSTOCK SPECIFICATION:

TAILSTOCK TAPER: MT3

TAILSTOCK SLEEVE STROKE: 110 mm

TAILSTOCK SLEEVE SIZE: 32 mm
