ROBOT MILLING
SGMT offers robot milling module featuring KUKA robot and powered by SprutCAM X. Robot milling is more flexible and price friendly compare to normal CNC machining center in which robot milling can perform up to 5 axis machining strategy and offer bigger working range. One of the best solution for model or prototype machining.
CUSTOMIZE SOLUTIONS:
SMALL ROBOT OR INDUSTRIAL LEVEL
Basically offering two type of robot milling module. The Cabinet type module is featuring a small robot confined within a cell / cabinet; mainly for light duty, research and small scale modeling machining work. It is recommend for lab or workshop that is more suitable for a compact machining station.
Open space module is flexible with robot size and will be surrounded by fences integrated with safety sensor. Open space module is an industrial level machining module that can be freely customize with additional feature such as rail, rotary table and vacuum system to keep work area clean. The work envelope is bigger and thus machining of large object can be achieved.
POSSIBLE FEATURE & SOLUTIONS
COMPACT SOLUTIONS:
Small working envelope for prototyping, conceptual model and research purpose
-
KUKA 6 axis robotic KR10
-
Manual tool change spindle router
-
Working table with clamping slot (size customize)
-
Tool holder shelf to keep tool tidy and well arrange
-
Housing for robot customized to suit system & space requirement
-
Integrated safety sensor and emergency stop button
Optional solutions:
-
Vacuum table
-
Dust extraction system
-
Rotary table integration
-
Tool measuring system
-
Monitoring & recording system
OPEN SPACE SOLUTIONS:
Free & large working envelope for industrial application such as large conceptual model, prototyping, mold making (soft material), & machining of part
-
KUKA robotic arm KR Quantec
-
Pneumatic tool change spindle unit
-
Working table or positioner (rotary table)
-
Fencing with safety sensor (customize based on requirement & space)
-
Electronic component and system driver cabinet
Optional solutions:
-
Automatic tool changing system
-
Vacuum table
-
End effector changing system
-
Dust extraction system for cleaning
-
Linear robot rail
-
Monitoring & recording system
-
Tool measuring system
*All system module can be customize based on user preference

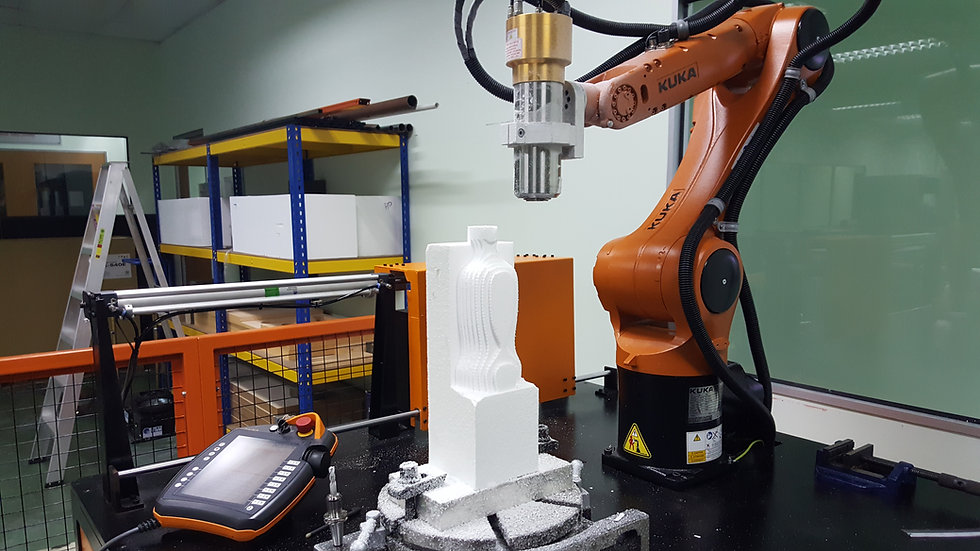

Robot milling at UTeM FTK
SUPPORTED SOFTWARE
Our robot milling is powered by SprutCAM Robot module which
is a single environment for the offline programming (OLP) of industrial robots with efficient robot machining solution for the rapid creation of complex collision-free 3D movements in native 6 or more axes code
SprutCAM Robot offers an extensive range of tool path strategies working directly with 3D models and different robot application:
-
Milling strategies: 2 axis milling, 3 axis milling, rotary milling and 5 axis milling
-
Cutting strategies
-
Welding
-
Cladding
-
Painting
All tool paths are generated taking into account the specific robot kinematics. The robot’s additional sixth and other degrees of freedom can be optimized either automatically or manually to extend the reach zone, avoid collisions or improve machining conditions.
